WHY CHOOSE THIS TIRE
Blades variable depth for optimum rib flexion, uniform wear and wet braking performance.
Slightly directional design to provide grip in forward & braking direction.
Groove stone ejectors help prevent stone trapping and drilling to enhance casing toughness and retreadability.

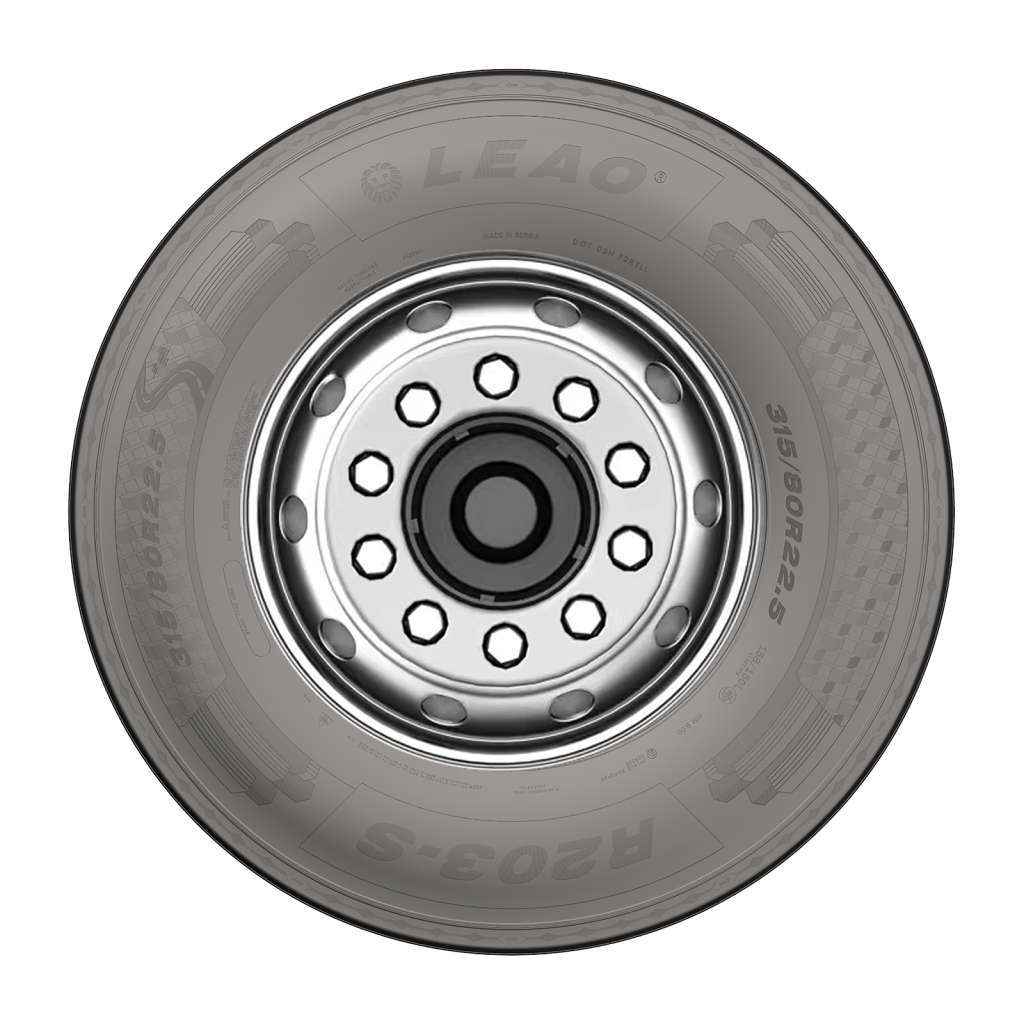

PRODUCT RANGE R203-S
| Size | Ply Rating | Load Index | Speed Symbols |
Standard Rim |
Max Load and Inflated Pressure | Overall Diameter (mm) |
Section Width (mm) |
Tread Depth (mm) |
|||
| Dual | Single | ||||||||||
| kg | kpa | kg | kpa | ||||||||
| 295/60R22.5 | 16 | 150/147 | L | 9.00 | 3075 | 900 | 3350 | 900 | 926 | 292 | 12.5 |
| 295/80R22.5 | 18 | 154/149 | M | 9.00 | 3250 | 850 | 3750 | 850 | 1044 | 298 | 15.5 |
| 315/60R22.5 | 16 | 152/148 | L | 9.75 | 3150 | 900 | 3550 | 900 | 950 | 313 | 13.0 |
| 315/70R22.5 | 18 | 156/150(154/150) | L(M) | 9.00 | 3350 | 900 | 4000 | 900 | 1014 | 312 | 14.5 |
| 315/80R22.5 | 22 | 158/150(154/150) | L(M) | 9.00 | 3350 | 900 | 4250 | 900 | 1076 | 312 | 15.5 |
| 385/55R22.5 | 20 | 160(158) | K(L) | 12.25 | -- | -- | 4500 | 900 | 996 | 386 | 13.5 |
| 385/65R22.5 | 24 | 164(158) | K(L) | 11.75 | -- | -- | 5000 | 900 | 1072 | 389 | 14.5 |
